Model | HBQ–061C | HBQ–064 | HBQ–065/065E | HBQ-411 |
Power Supply | AC220/AC110(可选) (Optional) | |||
Rated Power | 40W(Max) | 30W(Max) | 40W(Max) | 750W(Max) |
Data acquisition speed | 1KHz | |||
Weight | 15kg | 9kg | 18kg | 180kg |
Measuring range | 5-500N /0.5-50kg | 5-1000N /0.5-100kg | 5-2000N /0.5-200kg | 40N-10kN/4-100kg |
Applied force accuracy | ±1% | ±1% | ±2% | ±0.5% |
Dimensions | L350xW210xH255 | L310xW183xH88 | L380xW253xH226 | L760xW450xH1750 |

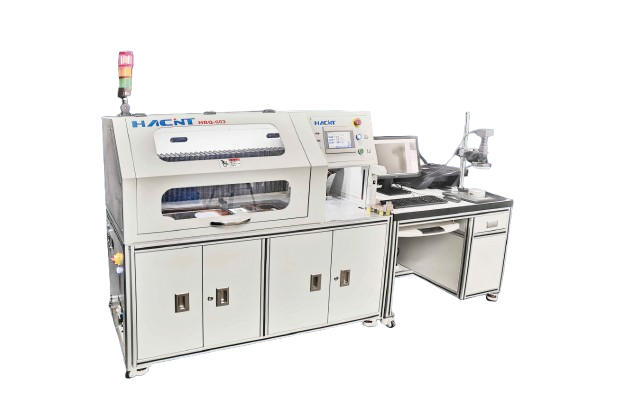

HBQ 053 QUALITY TOOLS
Type | HBQ-053 |
Cross section | 0.35-120 mm2 |
Wheel thickness | 0.7mm |
Rotating speed | 2700rpm(max) |
Corrosion | Electronic corrosion |
Processing time | 3-5min |
Camera | 300M, USB2.0 |
Hd microscope | 27.3-195x |
Cross section analysis software | X-scan (Germany)/ HCSS(Optional) |
Power supply | AC220V/50Hz |
Dimension | L2445×W640×H1290 |
